In Falcone

🏗️

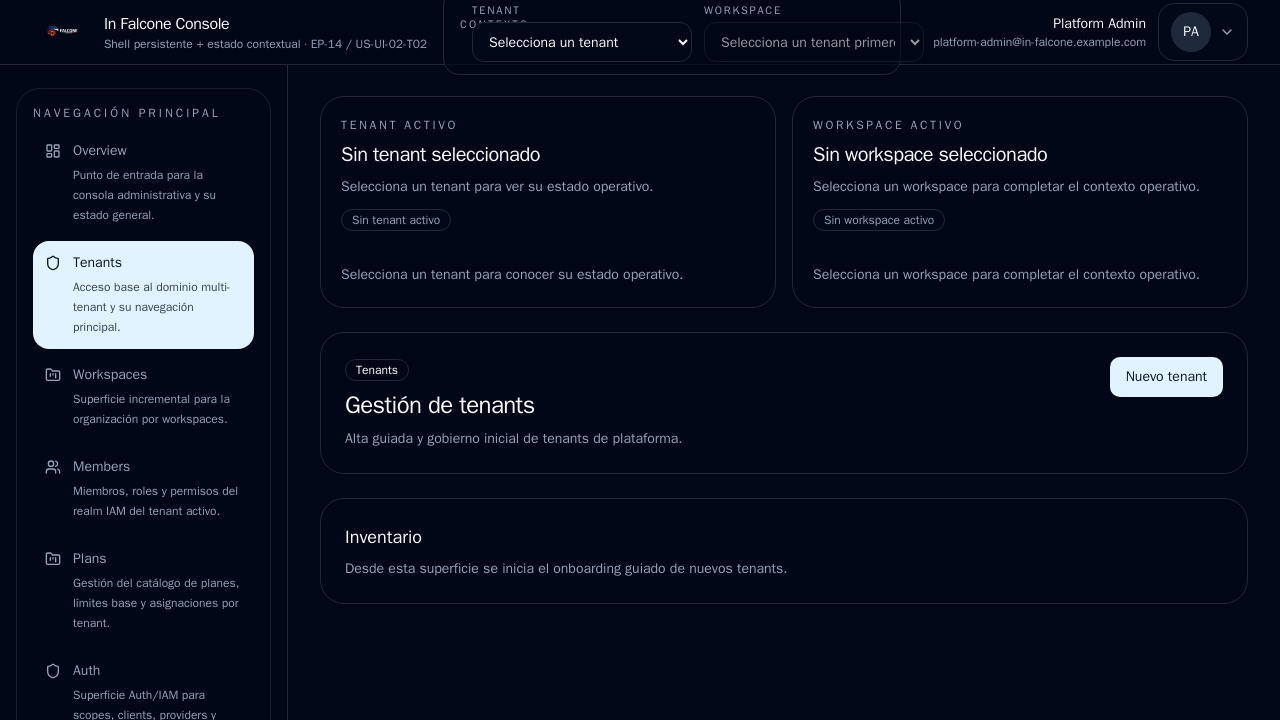

Multi-Tenant by Design

Hierarchical isolation model with platform users, tenants, workspaces, and managed resources. Hybrid PostgreSQL isolation with schema-per-tenant and dedicated-database escalation.

🔌

Unified Data APIs

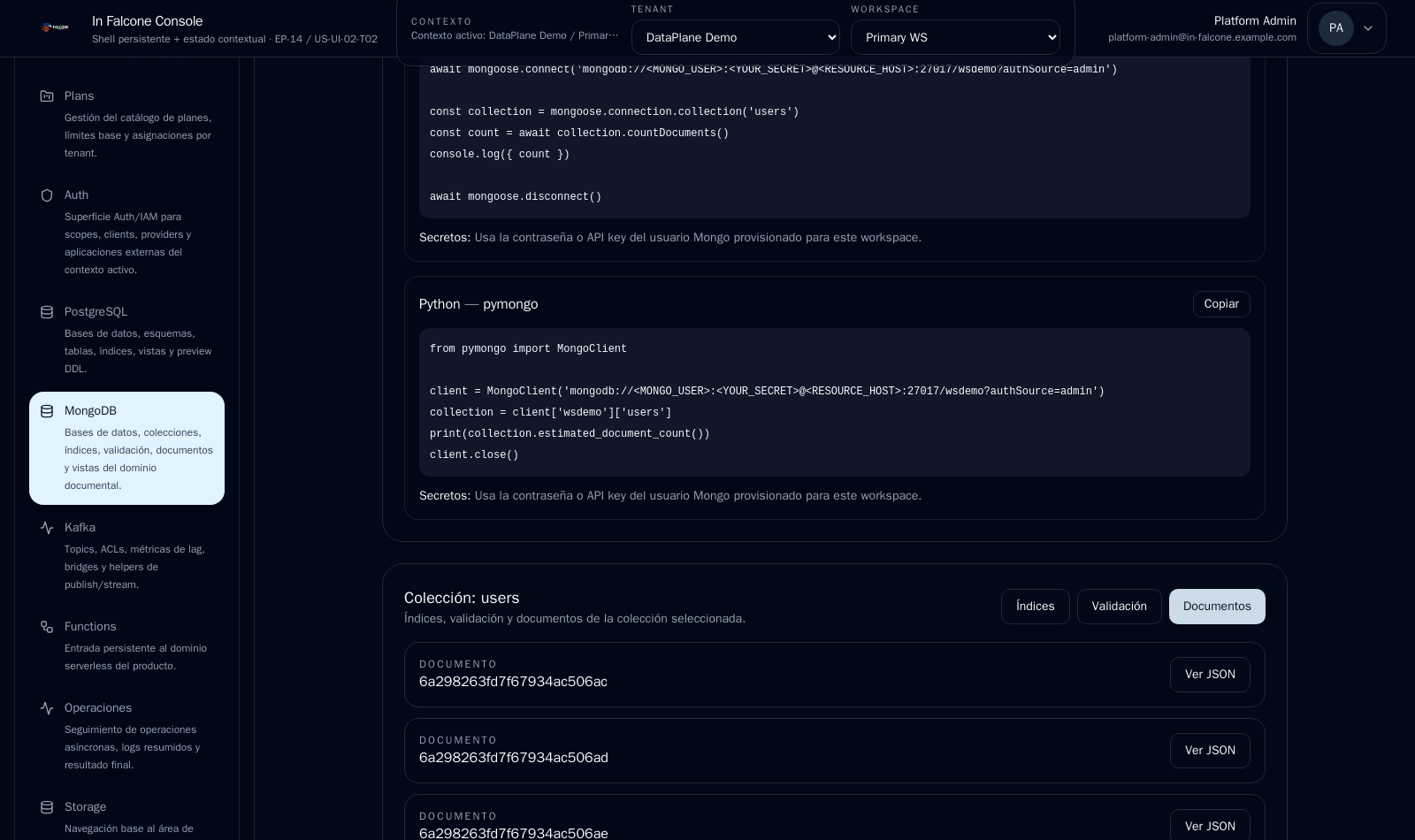

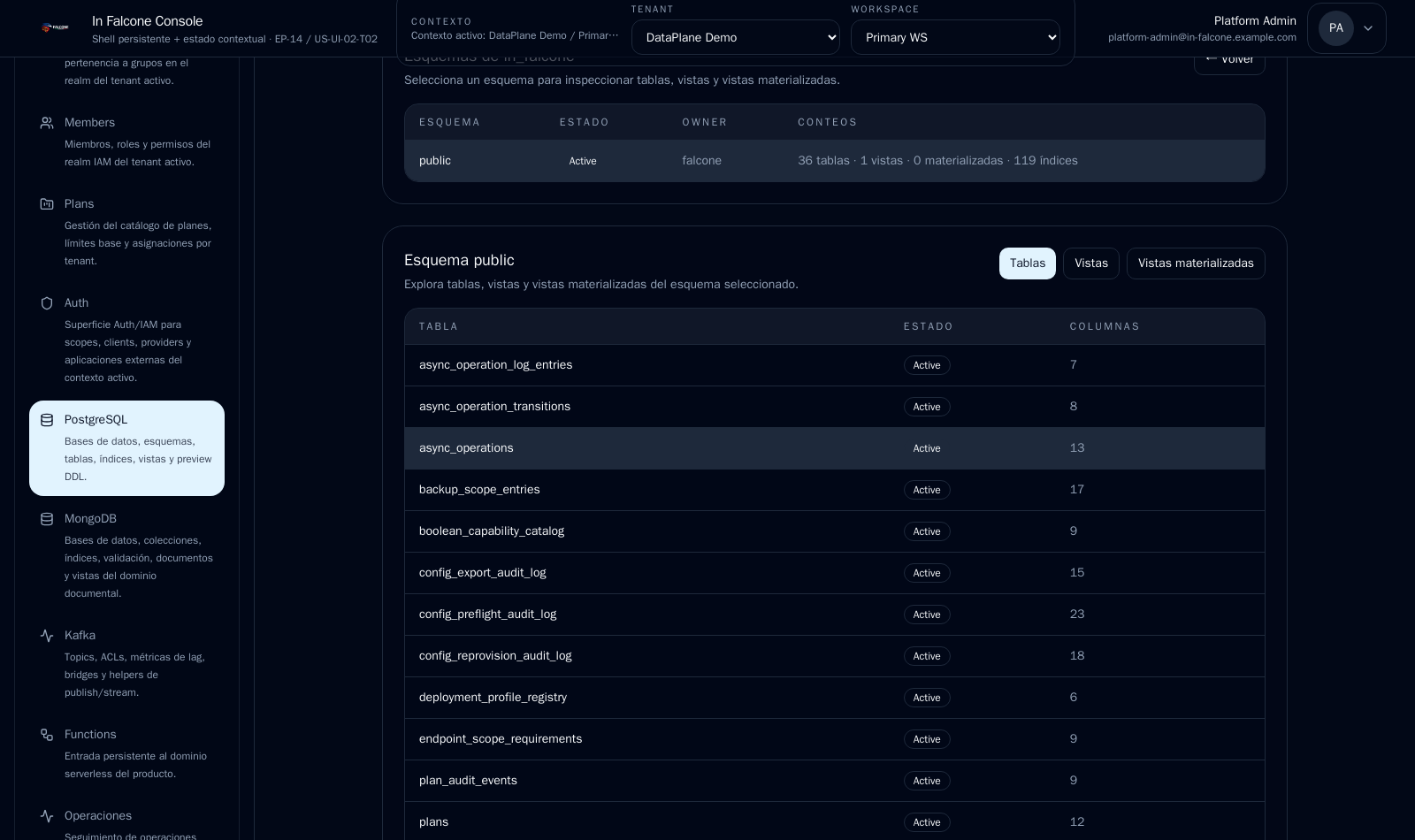

REST APIs for PostgreSQL (SQL-like CRUD with RLS) and MongoDB (document operations, aggregations, change streams) — all tenant-scoped and audit-logged.

⚡

Realtime Subscriptions

WebSocket-based realtime event delivery with Keycloak authentication, Kafka-backed audit trails, and fine-grained channel filtering.

🔐

Enterprise Security

Keycloak IAM with platform and tenant realms, Vault + ESO secret management, APISIX gateway with OIDC, rate limiting, CORS, and idempotency.

☸️

Kubernetes & OpenShift Native

Helm umbrella chart with layered values, deployment profiles (all-in-one, standard, HA), air-gap support, and multi-platform exposure (Ingress, Route, LoadBalancer).

🔭

Built-in Observability

Prometheus metrics, multi-tenant dashboards, health checks, quota enforcement, threshold alerts, and a complete audit pipeline with correlation tracking.

Quick Overview

In Falcone is a modular, multi-tenant Backend-as-a-Service platform designed for teams that need managed data, identity, serverless functions, and event streaming — all deployed on your own infrastructure.

Core Components

Component	Technology	Purpose
Control Plane	Node.js 20+ ESM	Platform API and orchestration
Web Console	React 18 + Vite	Management dashboard
API Gateway	Apache APISIX 3.10	Routing, auth, rate limiting
Identity	Keycloak 26.1	IAM, OAuth 2.0, multi-tenant realms
Primary Database	PostgreSQL 17.2	Relational data with tenant isolation
Document Store	MongoDB 8.0	Document data with partitioning
Event Streaming	Kafka 3.9	Event bus and audit pipeline

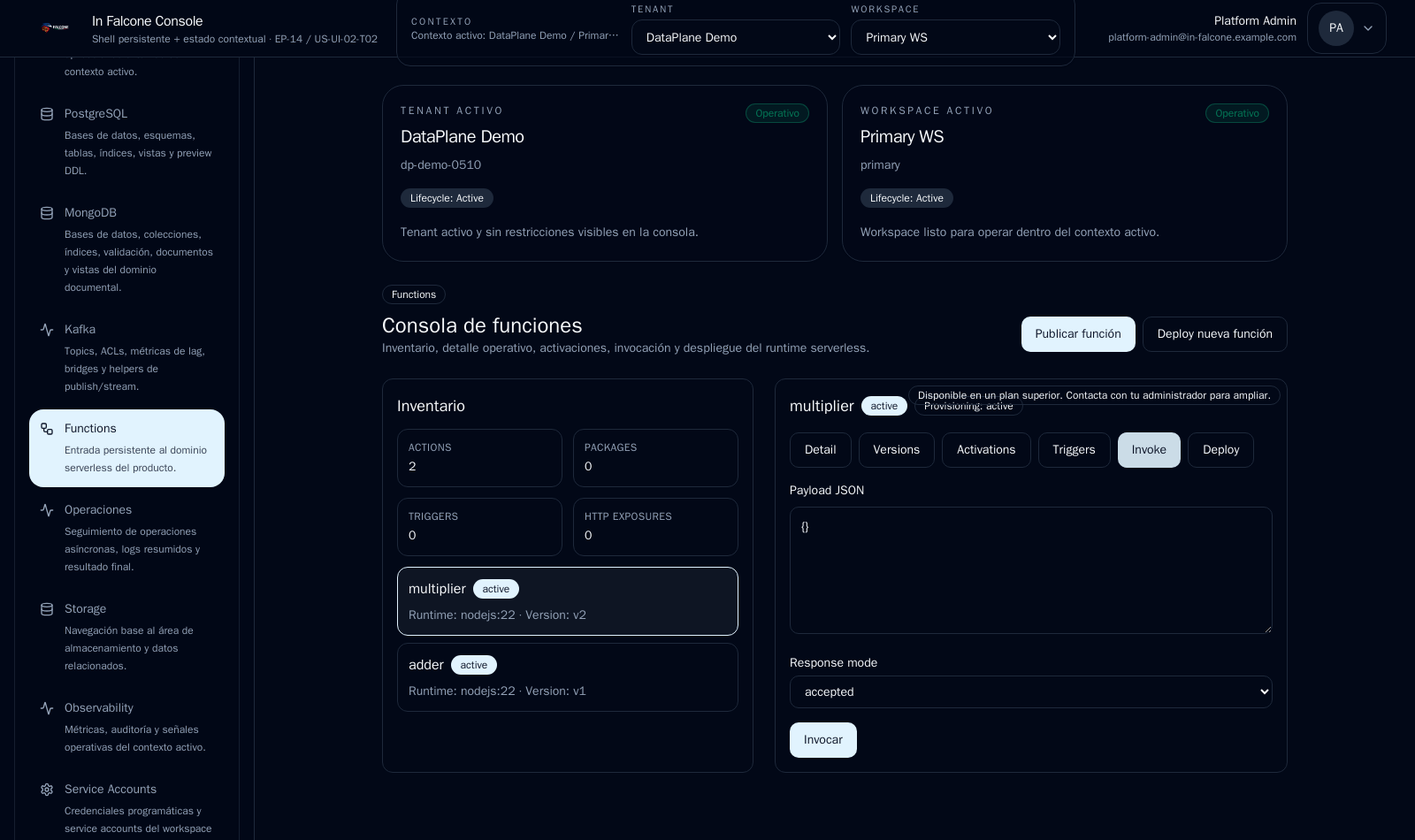

Serverless	Apache OpenWhisk 2.0	Function execution runtime
Object Storage	MinIO 2026.3	S3-compatible blob storage
Secrets	Vault OSS + ESO	Encrypted secret management
Metrics	Prometheus 3.2	Observability and alerting

Component

Technology

Purpose

Control Plane

Node.js 20+ ESM

Platform API and orchestration

Web Console

React 18 + Vite

Management dashboard

API Gateway

Apache APISIX 3.10

Routing, auth, rate limiting

Identity

Keycloak 26.1

IAM, OAuth 2.0, multi-tenant realms

Primary Database

PostgreSQL 17.2

Relational data with tenant isolation

Document Store

MongoDB 8.0

Document data with partitioning

Event Streaming

Kafka 3.9

Event bus and audit pipeline

Serverless

Apache OpenWhisk 2.0

Function execution runtime

Object Storage

MinIO 2026.3

S3-compatible blob storage

Secrets

Vault OSS + ESO

Encrypted secret management

Metrics

Prometheus 3.2

Observability and alerting

Monorepo Structure

falcone/
├── apps/
│   ├── control-plane/        # Platform API backend
│   └── web-console/          # React management UI
├── services/
│   ├── adapters/             # Provider adapters (Keycloak, OW, PG, Mongo...)
│   ├── internal-contracts/   # Machine-readable schemas & contracts
│   ├── provisioning-orchestrator/  # Tenant/workspace lifecycle
│   ├── gateway-config/       # APISIX routing definitions
│   ├── event-gateway/        # Event publishing bridge
│   ├── realtime-gateway/     # WebSocket subscription server
│   ├── audit/                # Audit event processing
│   ├── backup-status/        # Backup monitoring service
│   ├── pg-cdc-bridge/        # PostgreSQL Change Data Capture
│   ├── mongo-cdc-bridge/     # MongoDB Change Data Capture
│   └── ...
├── charts/
│   └── in-falcone/           # Umbrella Helm chart
├── docs/                     # Internal docs & ADRs
├── tests/                    # E2E and hardening tests
└── scripts/                  # Validation & generation scripts

In FalconeMulti-Tenant Backend-as-a-Service
