What is In Falcone?

In Falcone is an open-source, self-hosted Backend-as-a-Service (BaaS) platform that provides managed data, identity, serverless functions, event streaming, and object storage — all within a multi-tenant architecture designed for production workloads on Kubernetes and OpenShift.

The Problem

Building a multi-tenant backend platform from scratch requires integrating dozens of components: databases, identity providers, API gateways, event brokers, object storage, observability stacks, and more. Each component needs tenant isolation, security hardening, audit logging, and operational tooling.

The Solution

In Falcone bundles these components into a cohesive, declaratively configured platform:

• One Helm chart deploys the entire stack with layered configuration
• One API gateway routes all traffic with authentication, rate limiting, and validation
• One identity provider manages platform and tenant authentication
• One control plane orchestrates tenant/workspace lifecycle
• One audit pipeline tracks every operation across all subsystems

Key Concepts

Platform Hierarchy

In Falcone organizes resources in a four-level hierarchy:

Platform
└── Tenant (organization / customer)
    └── Workspace (isolated environment)
        ├── External Application (client app)

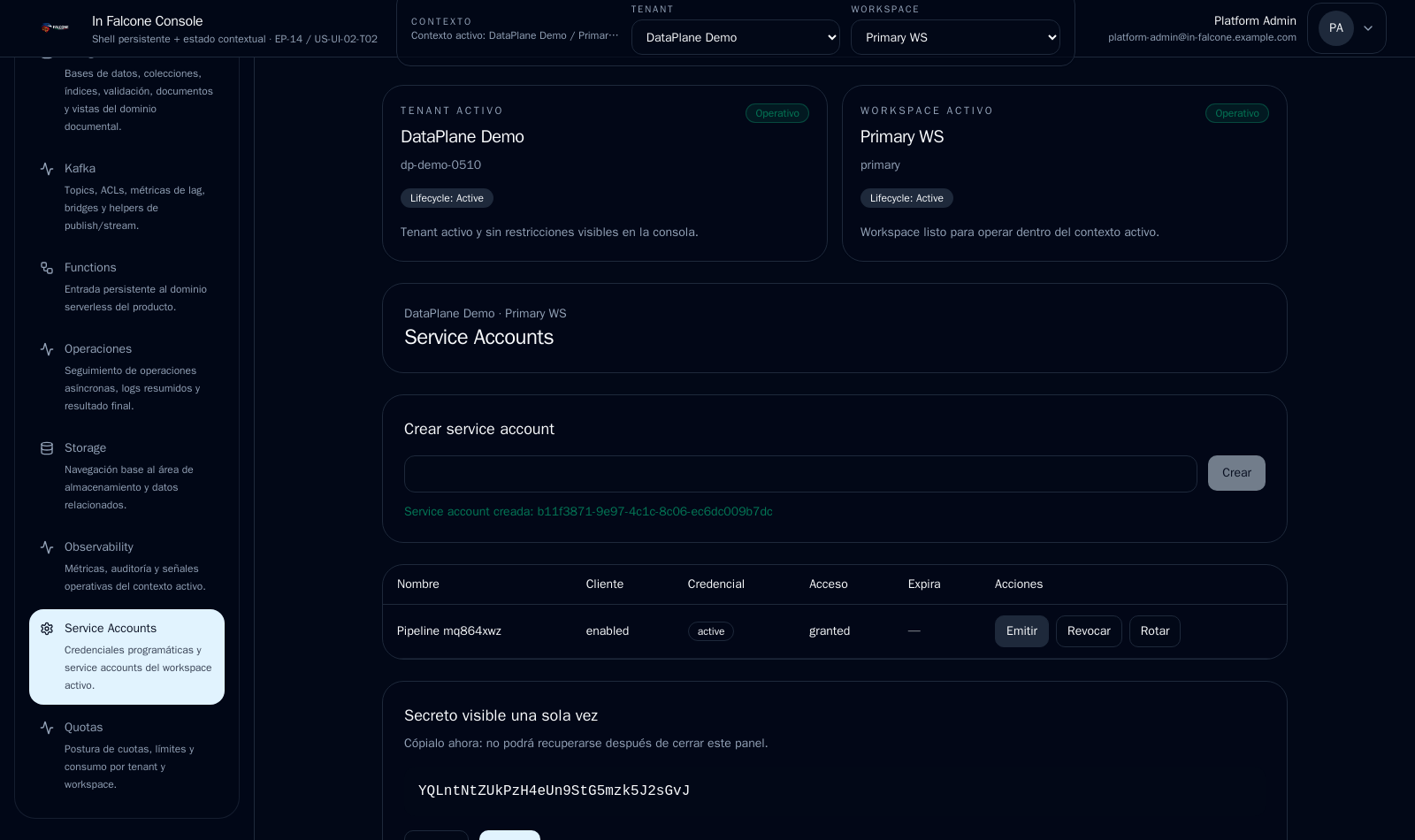

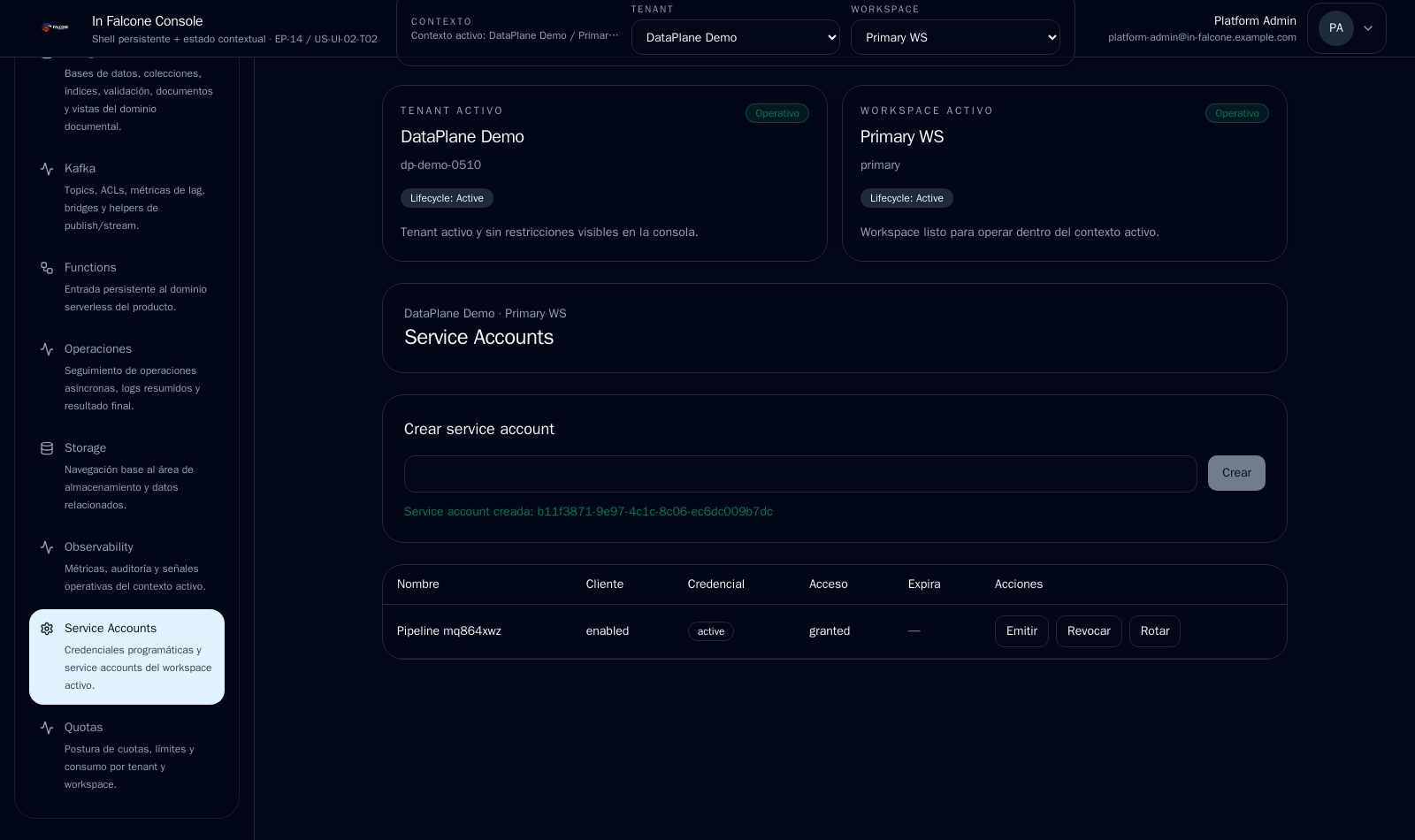

        ├── Service Account (machine identity)
        └── Managed Resource (database, function, bucket...)

Tenants

A tenant represents an organization or customer. Each tenant:

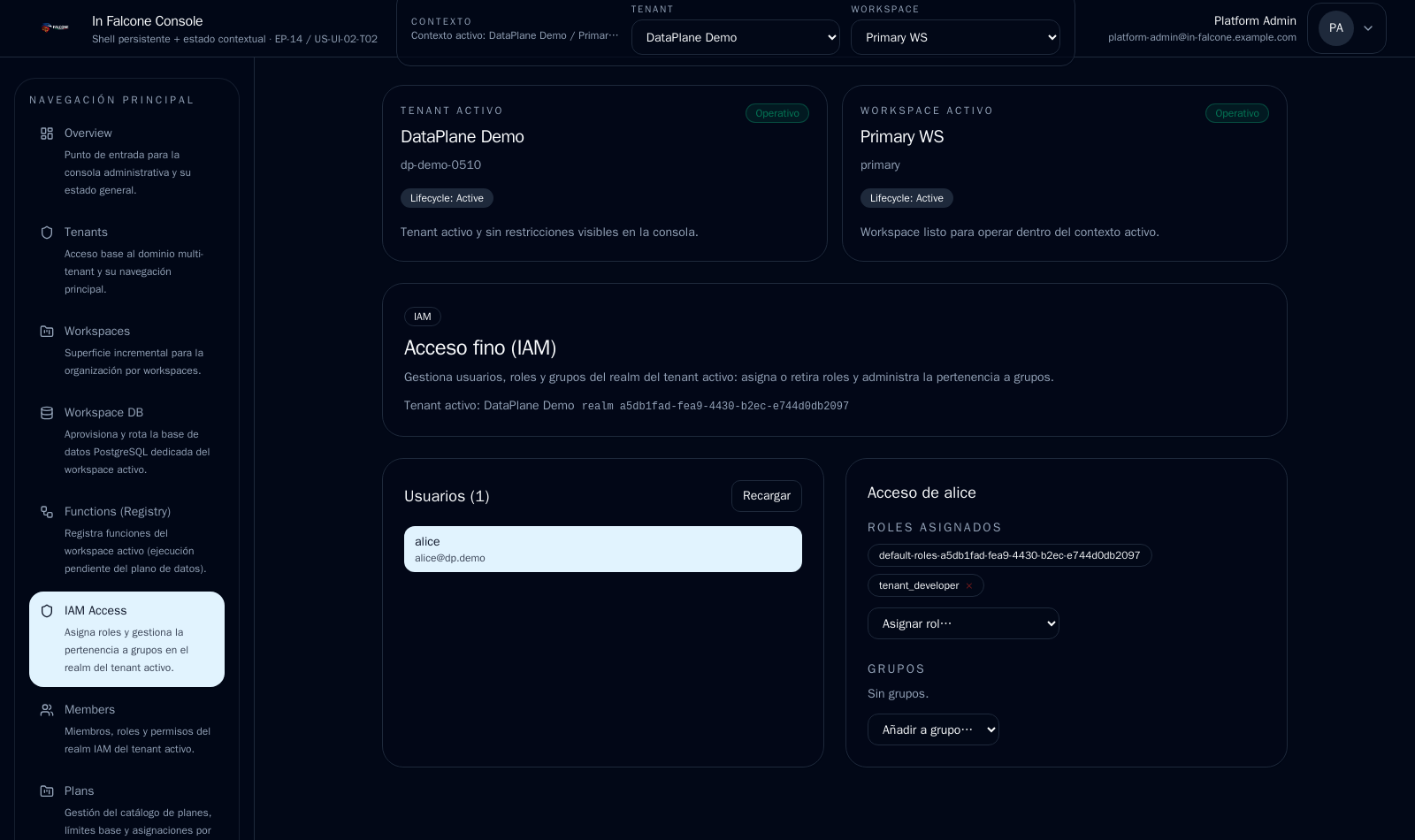

• Has its own Keycloak realm (or shares the platform realm depending on IAM topology)
• Owns one or more workspaces
• Is assigned a governance plan (starter, growth, regulated, enterprise)
• Has quota limits enforced by the platform

Workspaces

A workspace is an isolated environment within a tenant. It provides:

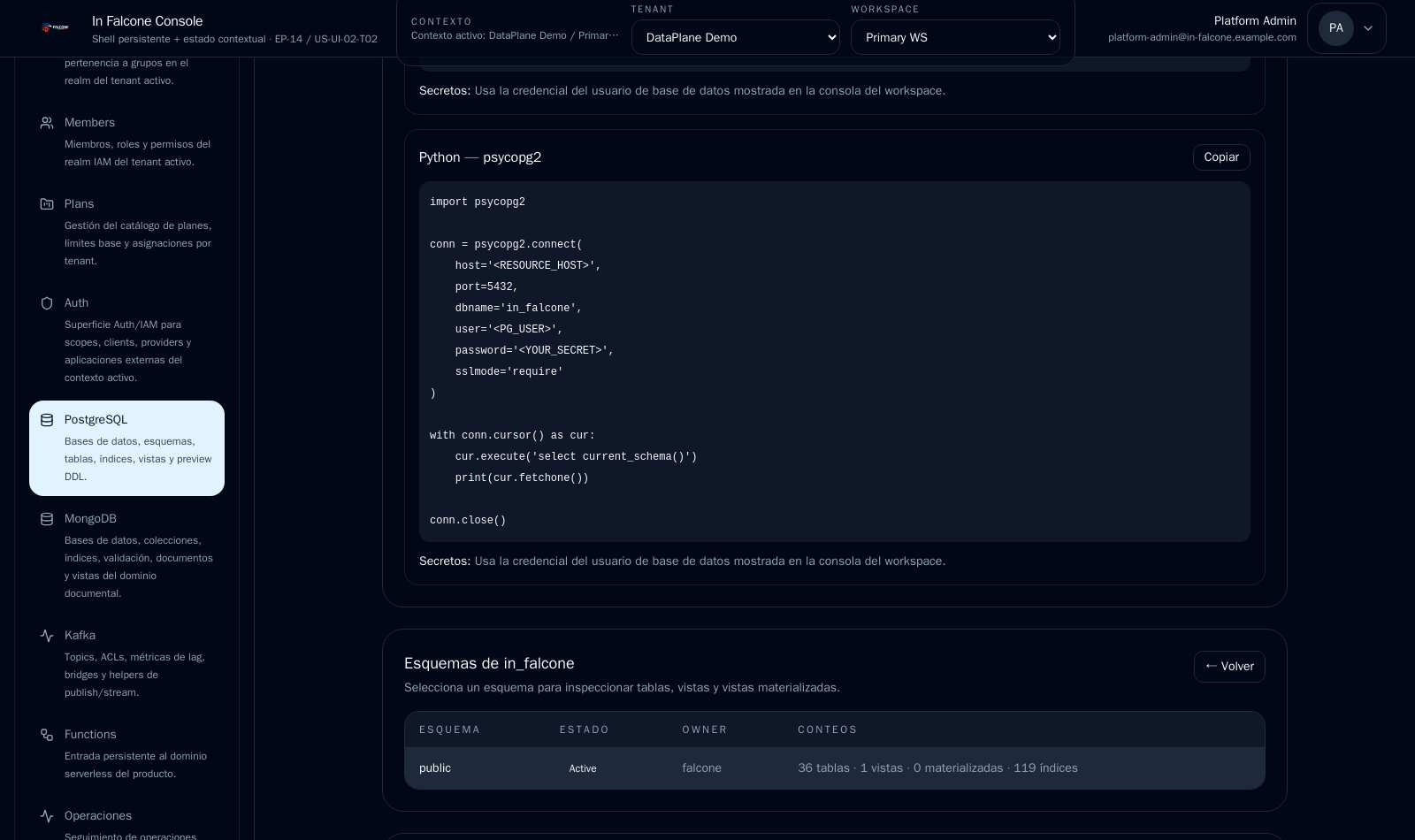

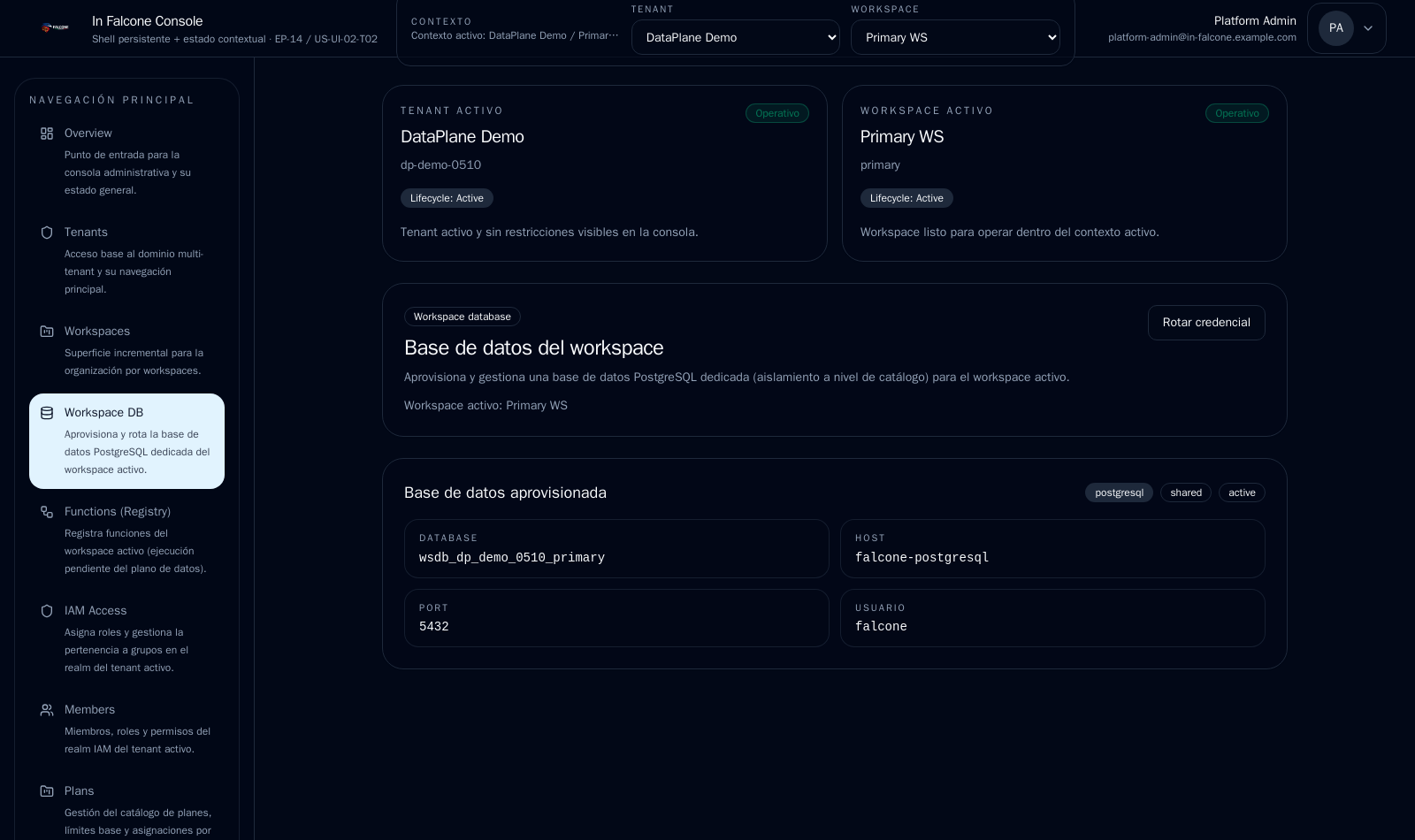

• Dedicated PostgreSQL schema (shared database) or dedicated database (enterprise tier)

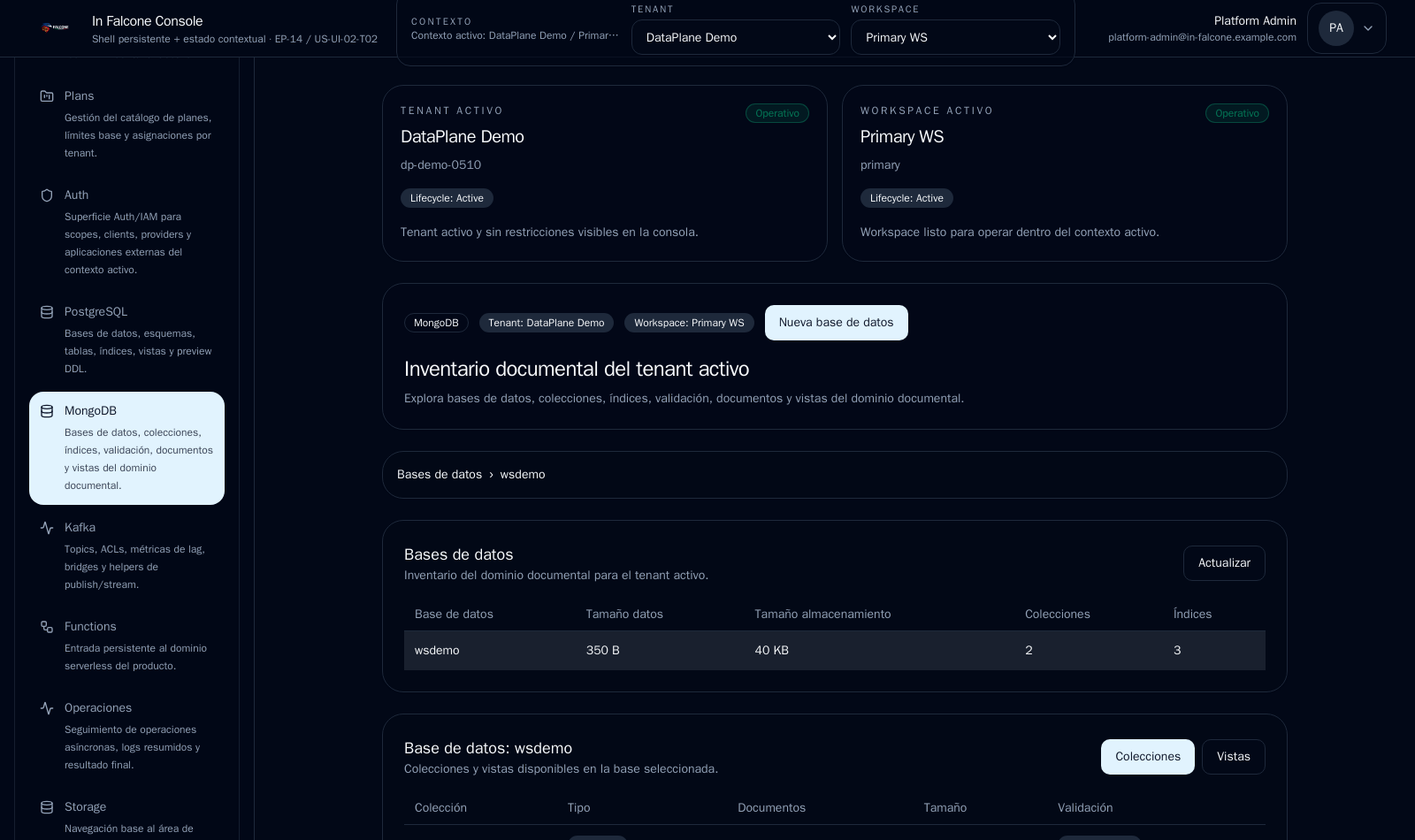

• MongoDB database with automatic tenant partitioning

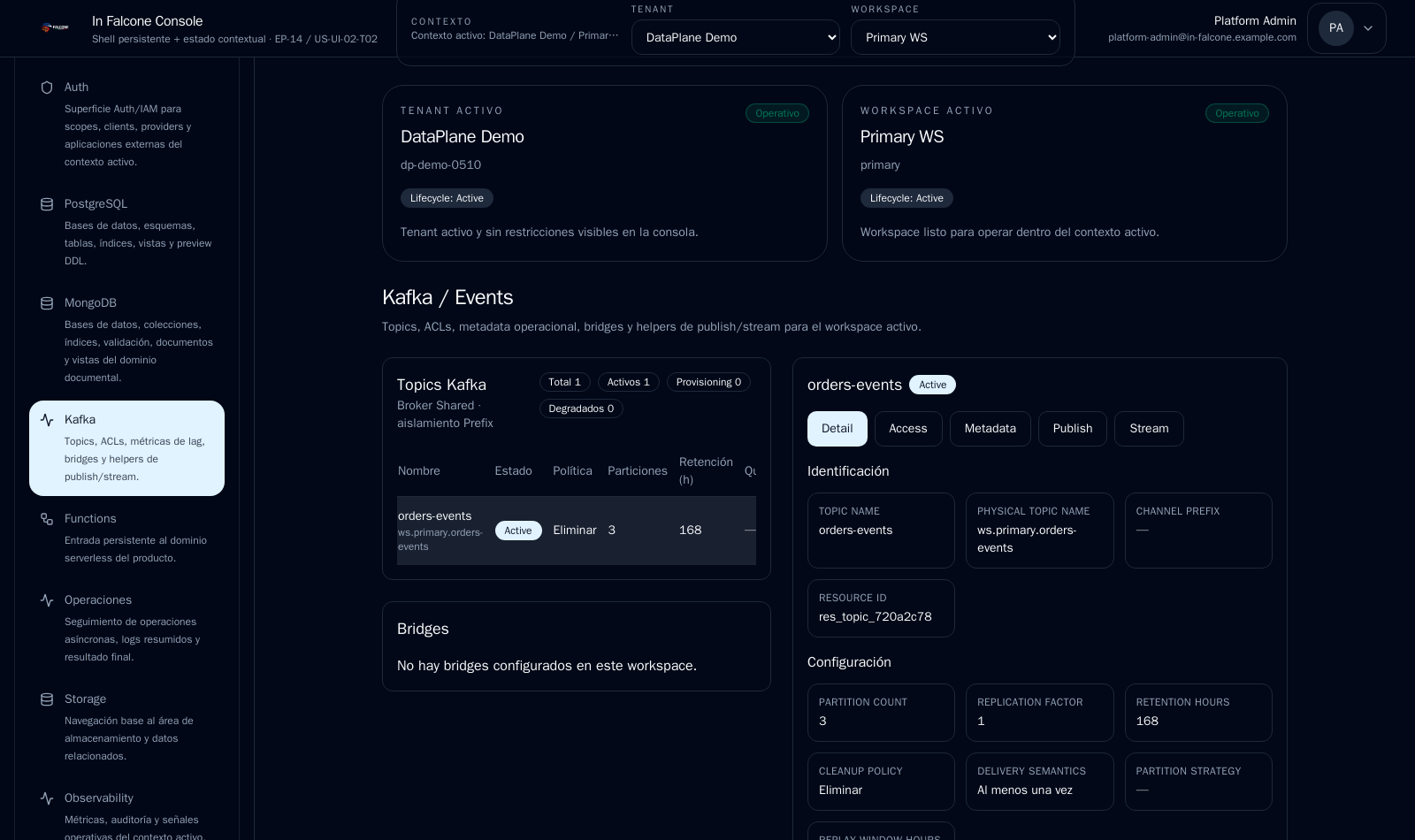

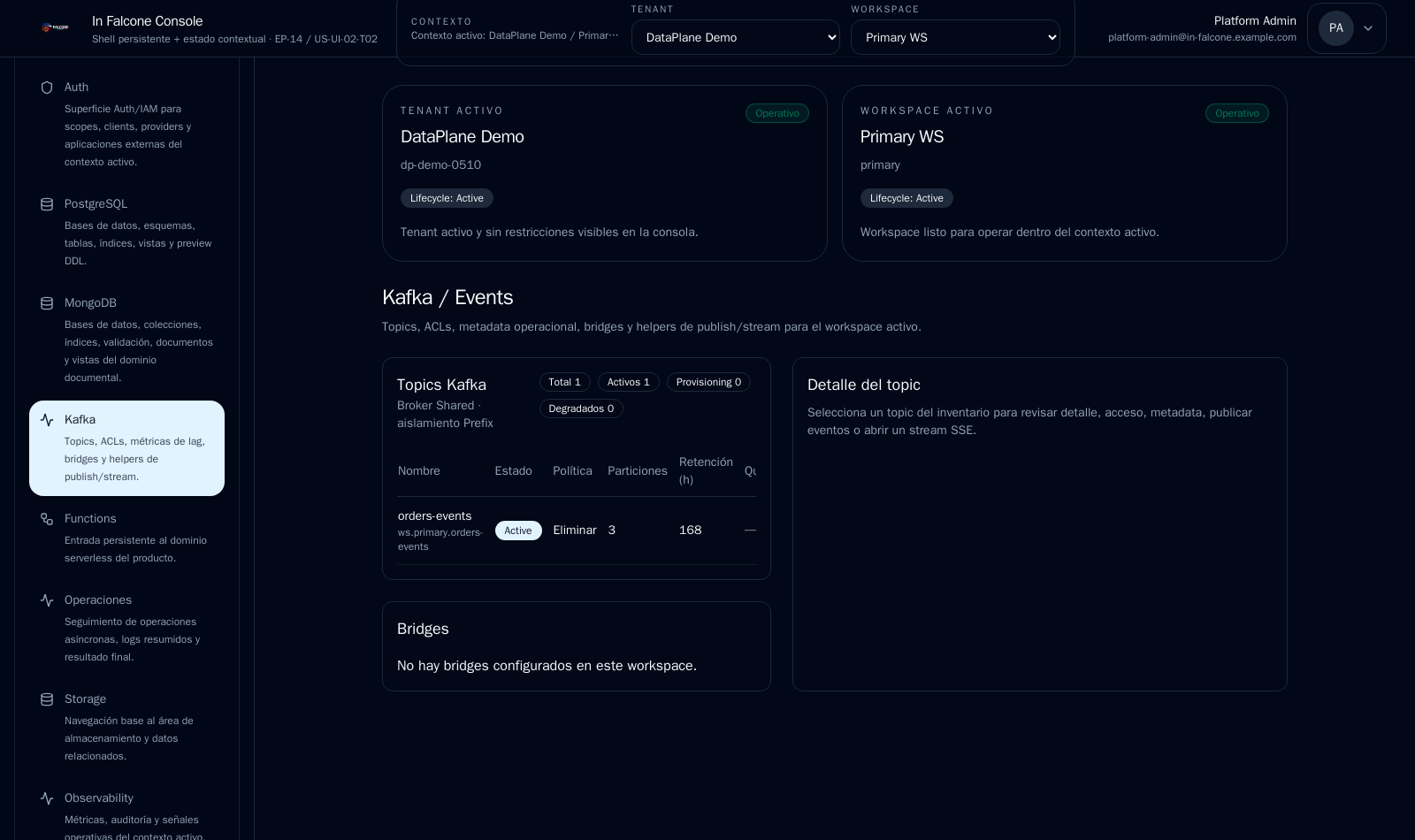

• Kafka topics for event streaming

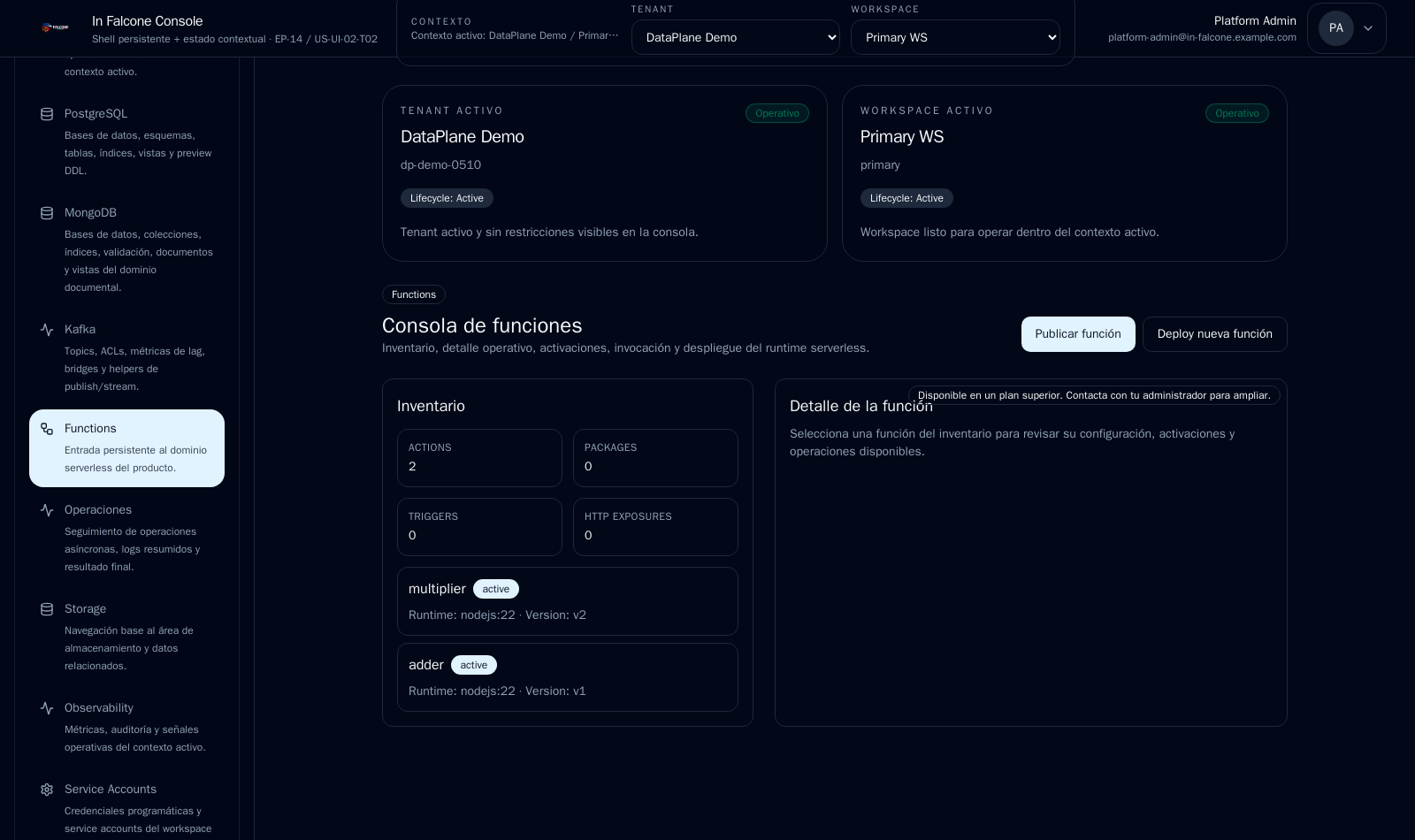

• OpenWhisk namespace for serverless functions

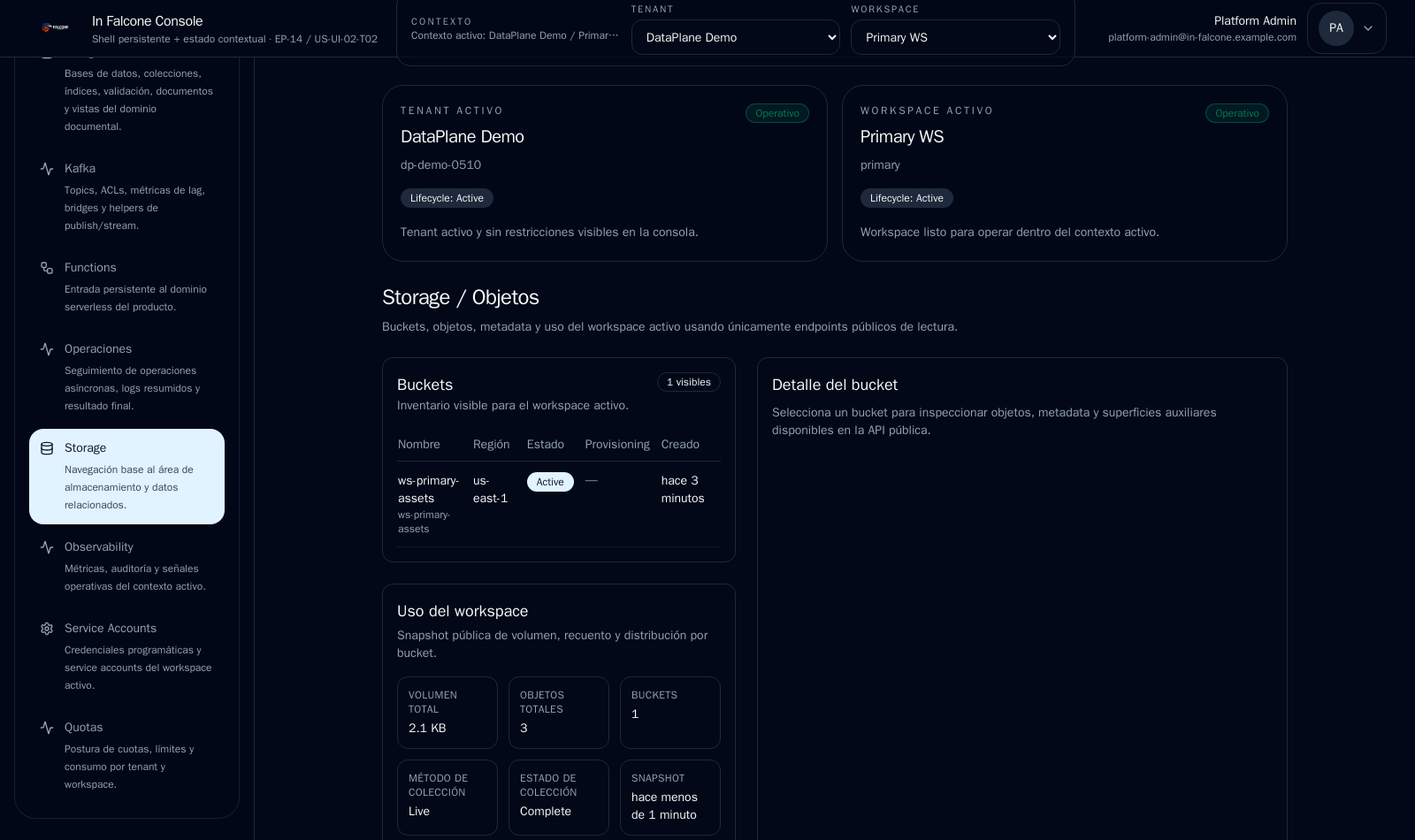

• S3 bucket paths for object storage
• Realtime subscription channels

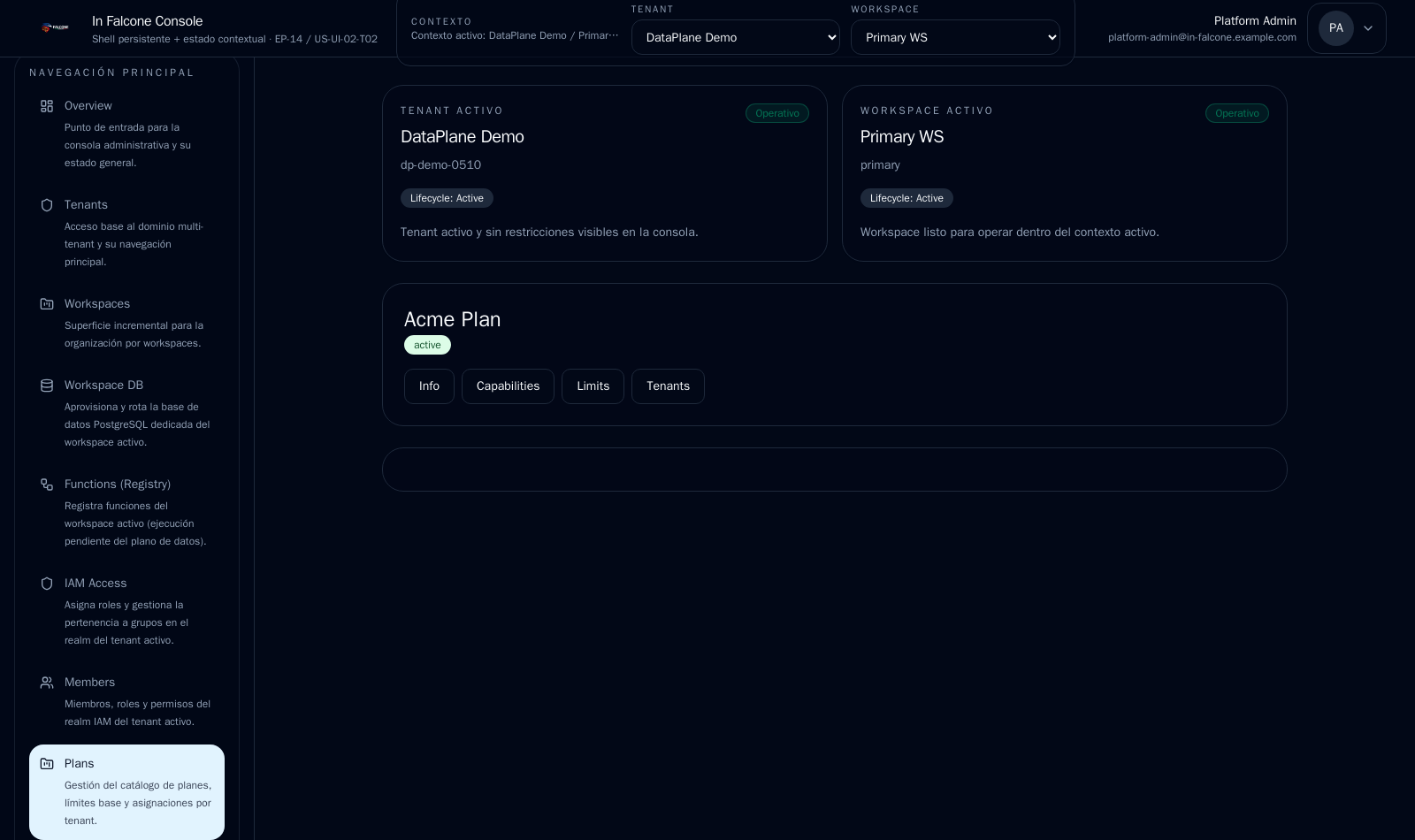

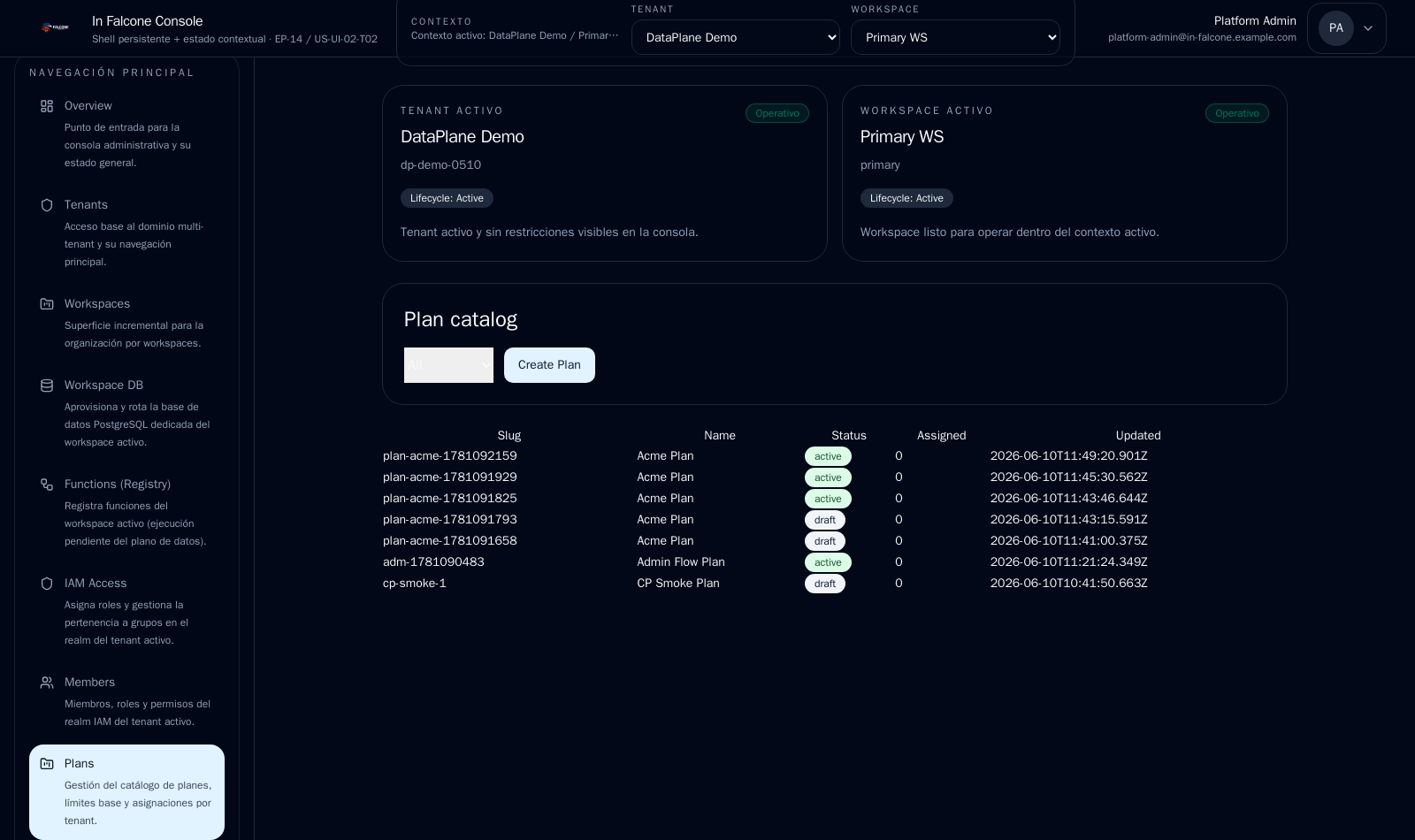

Plans & Governance

The platform enforces governance through plans that define:

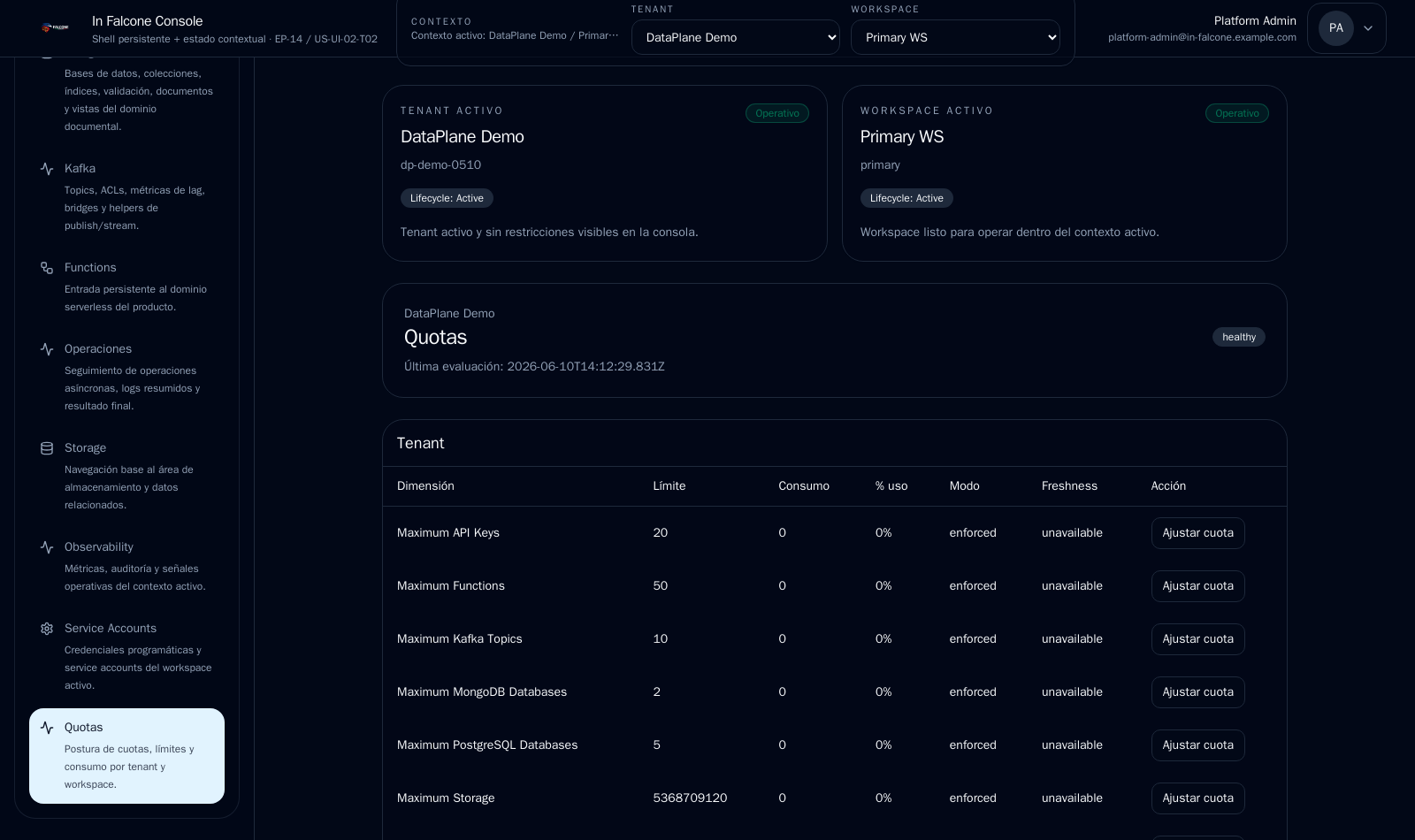

• Quota dimensions: max workspaces, databases, functions, storage, API calls
• Capability flags: which features are available (identity, postgres, mongo, kafka, storage, observability, audit)
• Deployment profiles: infrastructure topology (shared-starter, shared-growth, regulated-dedicated, enterprise-federated)

Architecture at a Glance

                    ┌─────────────────────────────┐
                    │        APISIX Gateway        │
                    │  (auth, routing, rate limit)  │
                    └──────┬──────────┬────────────┘
                           │          │
              ┌────────────┘          └────────────┐
              ▼                                    ▼
   ┌──────────────────┐                ┌───────────────────┐
   │   Control Plane   │                │   Web Console     │
   │   (Node.js API)   │                │   (React 18 SPA)  │
   └────────┬─────────┘                └───────────────────┘
            │
   ┌────────┼──────────────────────────────────────┐
   │        ▼                                      │
   │  Provisioning Orchestrator                    │
   │  ┌──────────┬──────────┬──────────┬────────┐  │
   │  │ Keycloak │ Postgres │ MongoDB  │ Kafka  │  │
   │  │ Adapter  │ Adapter  │ Adapter  │Adapter │  │
   │  └──────────┴──────────┴──────────┴────────┘  │
   └───────────────────────────────────────────────┘
            │           │          │          │
   ┌────────▼──┐ ┌──────▼──┐ ┌────▼────┐ ┌──▼─────┐
   │ Keycloak  │ │Postgres │ │ MongoDB │ │ Kafka  │
   │ 26.1      │ │ 17.2    │ │ 8.0     │ │ 3.9    │
   └───────────┘ └─────────┘ └─────────┘ └────────┘
         │
   ┌─────▼──────┐  ┌───────────┐  ┌───────────┐
   │ OpenWhisk  │  │   MinIO   │  │ Prometheus │
   │ 2.0        │  │  Storage  │  │  Metrics   │
   └────────────┘  └───────────┘  └───────────┘
         │
   ┌─────▼──────────────────────────┐
   │  Vault + External Secrets      │
   │  (secret management)           │
   └────────────────────────────────┘

Technology Stack

Layer	Technology	Version
Language	Node.js (ESM)	20+
Frontend	React + TypeScript + Tailwind + shadcn/ui	18
Build	Vite	Latest
Package Manager	pnpm (workspaces)	10+
API Gateway	Apache APISIX	3.10.0
Identity	Keycloak	26.1.0
Relational DB	PostgreSQL	17.2.0
Document DB	MongoDB	8.0.0
Event Broker	Apache Kafka	3.9.0
Serverless	Apache OpenWhisk	2.0.0
Object Storage	MinIO	2026.3.23
Secrets	HashiCorp Vault OSS + ESO	Latest
Metrics	Prometheus	3.2.1
Deployment	Helm 3 on Kubernetes / OpenShift	Latest

What's Next?

• Installation — Full installation guide for all environments
• Quickstart — Get running in 5 minutes
• Architecture Overview — Deep dive into the system design
